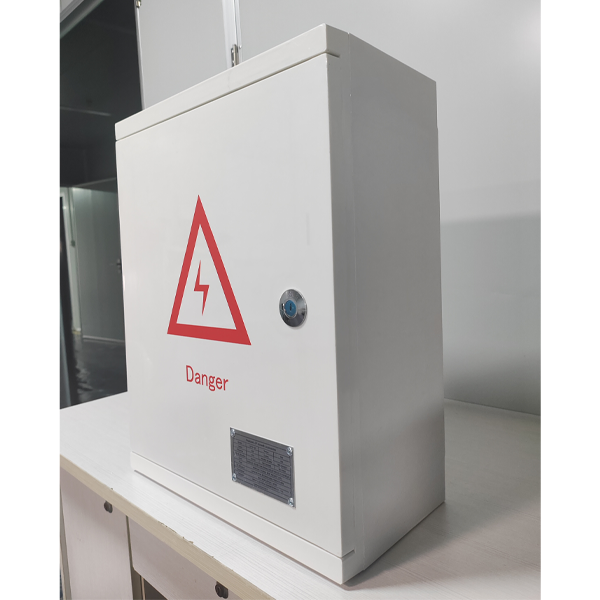

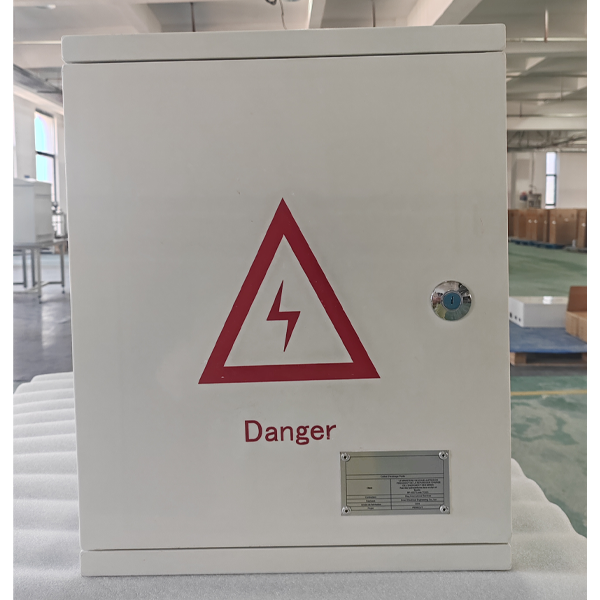

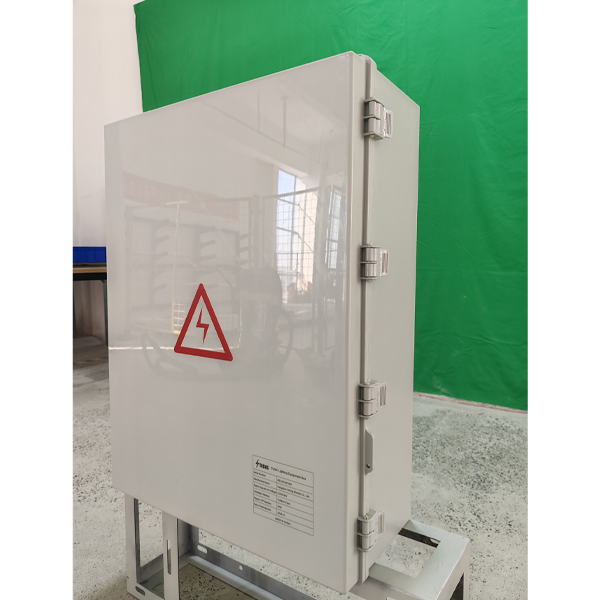

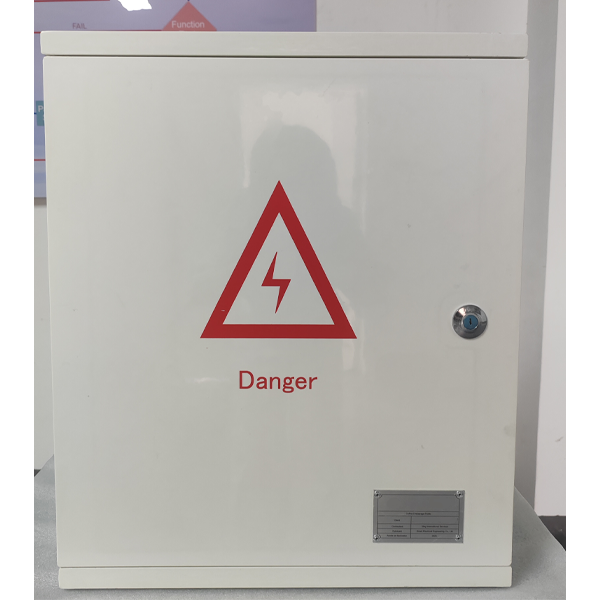

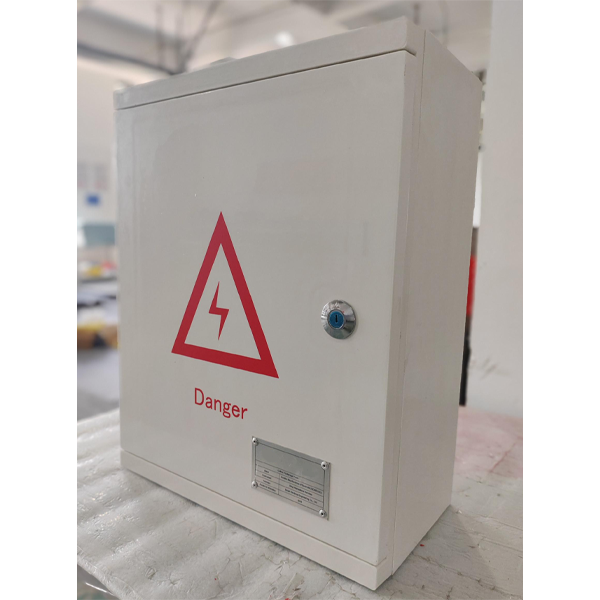

Street Light Control Box (LCB-2)

Integrated corrosion-proof smart streetlight box.

Download Datasheet/下载规格书
Power supply system

Single Phase, Three Phase

Rated Voltage

AC 230, 400V

Rated Frequency

50Hz

Rated Current

≤125A

Material

Fiberglass Reinforced Plastic (FRP), Metal Plate

Dimension

500(H) x 400(W) x 200(D) mm, Customization

Light sensor/ Clock

0.05-5k Lux, 168H

IP

Not less than IP54

Control Method

Clock, Twilight switch, Manual control

Metering unit

DC meter (Single Phase, Three Phase)

Style

Outdoor

Thickness

1.2mm (Cabinet Body), Customization

Brief Introduction

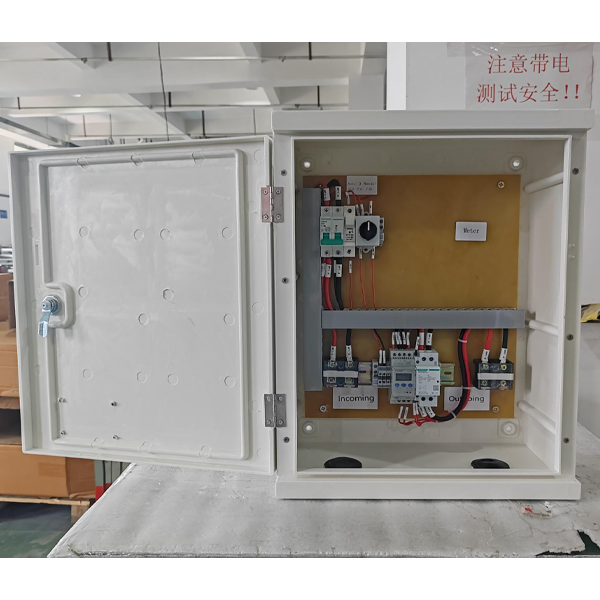

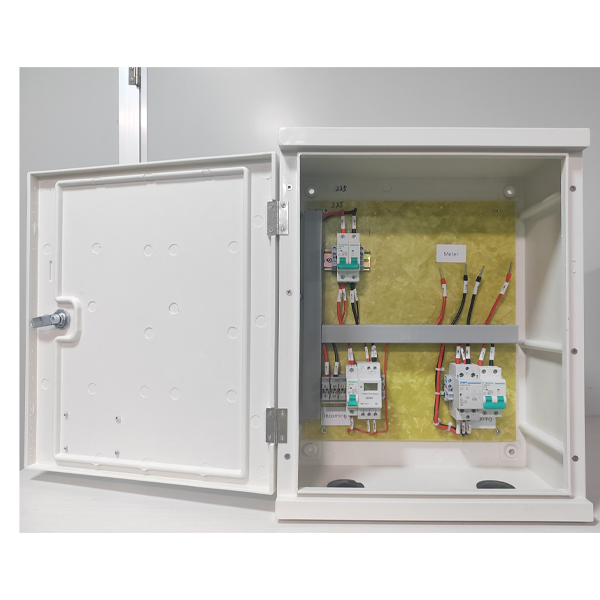

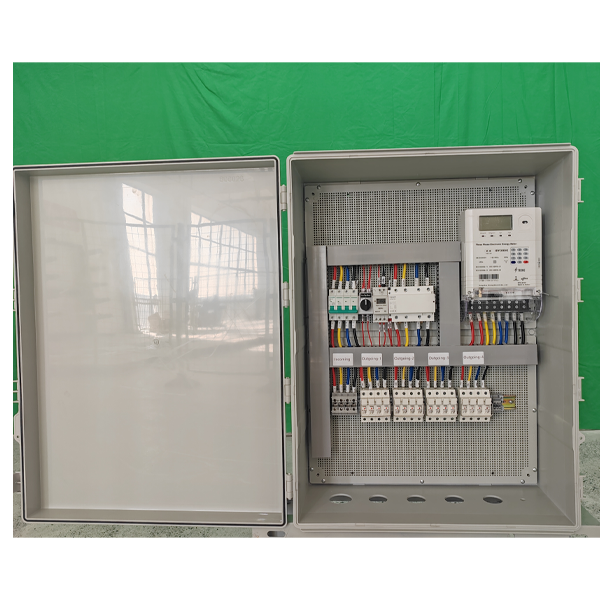

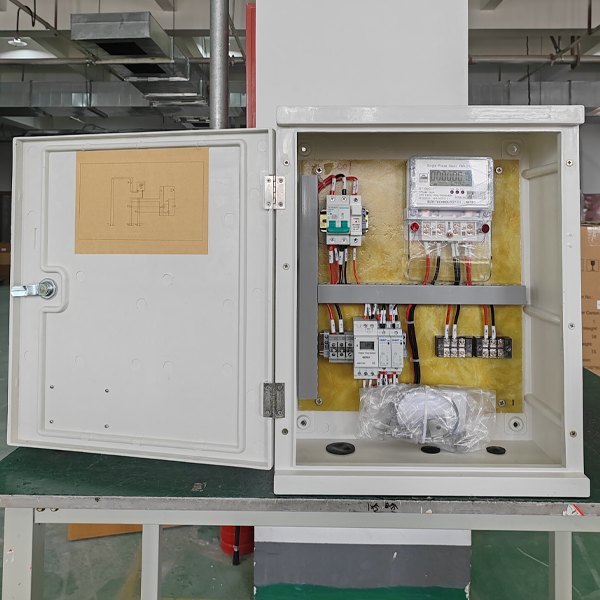

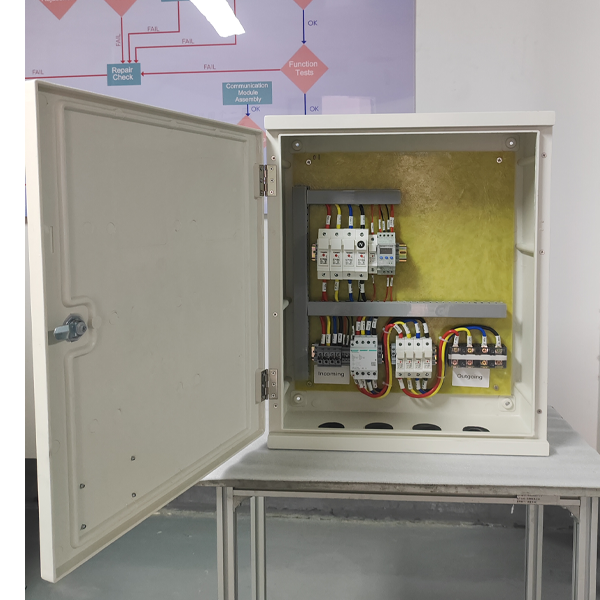

The street light control box integrates power distribution, intelligent control, safety protection, electricity metering, and status monitoring. It supports both manual and automatic control modes, is compatible with LED lights, and enables on-demand lighting and energy-saving management. It is widely applicable to centralized power supply, control, and protection of outdoor lighting systems in municipal roads, parks, and residential areas.

Special Features:

The street light control box has good resistance to atmosphere, water, and general concentrations of acids, alkalis, salts, and various oils and solvents. It effectively resists corrosion from acid rain, salt spray, and industrial pollutants, significantly reducing electrochemical corrosion and making it suitable for various harsh outdoor environments.

Power supply system

Single Phase, Three Phase

Rated Voltage

AC 230, 400V

Rated Frequency

50Hz

Rated Current

≤125A

Material

Fiberglass Reinforced Plastic (FRP), Metal Plate

Dimension

500(H) x 400(W) x 200(D) mm, Customization

Light sensor/ Clock

0.05-5k Lux, 168H

IP

Not less than IP54

Control Method

Clock, Twilight switch, Manual control

Metering unit

DC meter (Single Phase, Three Phase)

Style

Outdoor

Thickness

1.2mm (Cabinet Body), Customization

评价

目前还没有评价

成为第一个“Street Light Control Box (LCB-2)” 的评价者

您的邮箱地址不会被公开。 必填项已用 * 标注

FAQ

What IP rating do you recommend for outdoor distribution boxes in Africa?

For outdoor use in tropical or desert climates, we recommend IP54 or IP65 enclosures with anti-corrosion coating. Our TBC and LCB series are available in IP65 upon request.

Yes. Our LVDB low voltage distribution boards support copper busbars rated from 400A to 2500A. Custom configurations with specific breaker brands can be arranged for bulk orders.

Our MU32, MU33, and MU34 CT metering boxes comply with IEC 61439 and local utility requirements. CE certification is available for all exports.

Standard products ship within 15-20 working days after deposit. Customized orders typically require 30-45 working days depending on complexity.

We offer detailed installation manuals, and for large EPC projects, we can arrange factory training or remote commissioning support.
