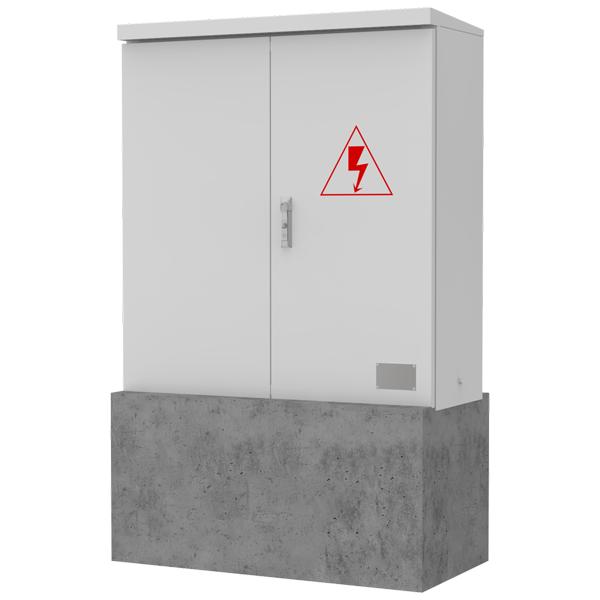

LVDB Ground installation
LVDB Ground installation

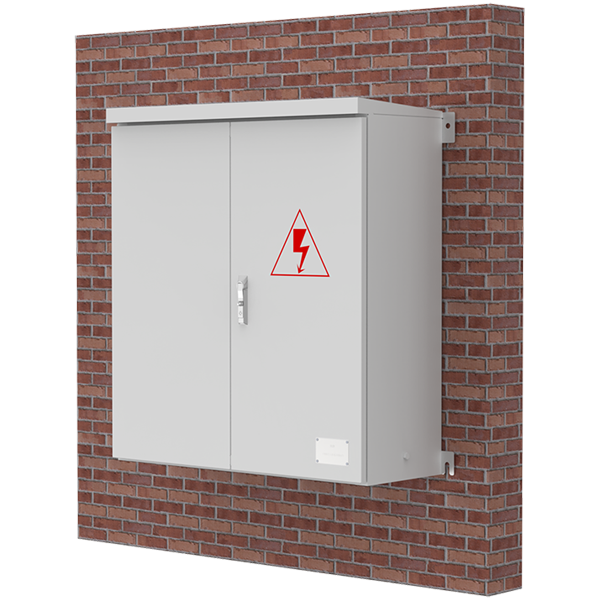

LVDB Wall installation
LVDB Wall installation

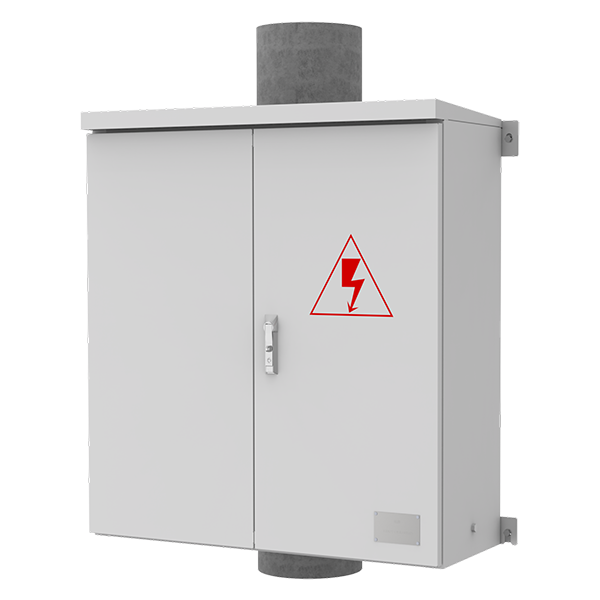

LVDB Pole installation
LVDB Pole installation

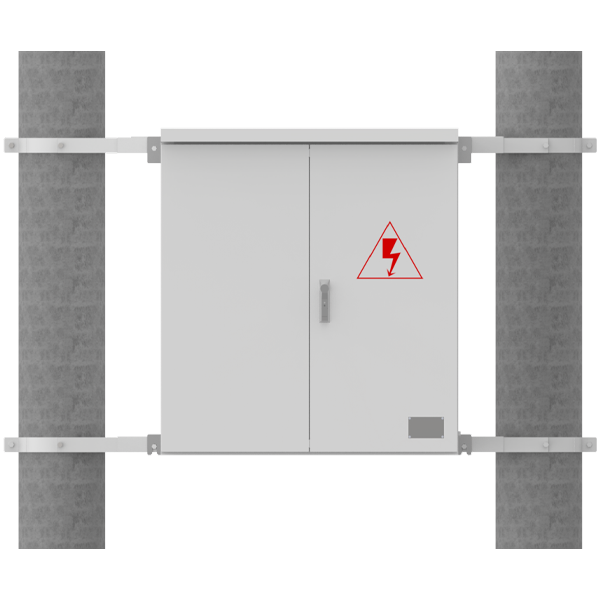

LVDB Crossarm installation
LVDB Crossarm installation

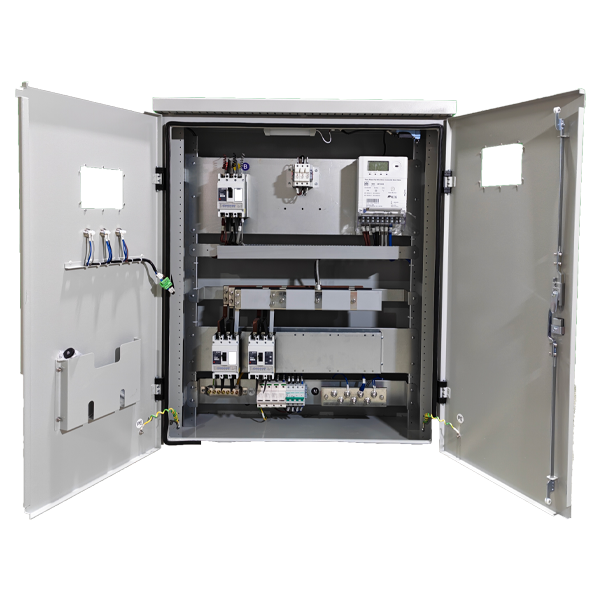

LVDB-T01
LVDB-T01

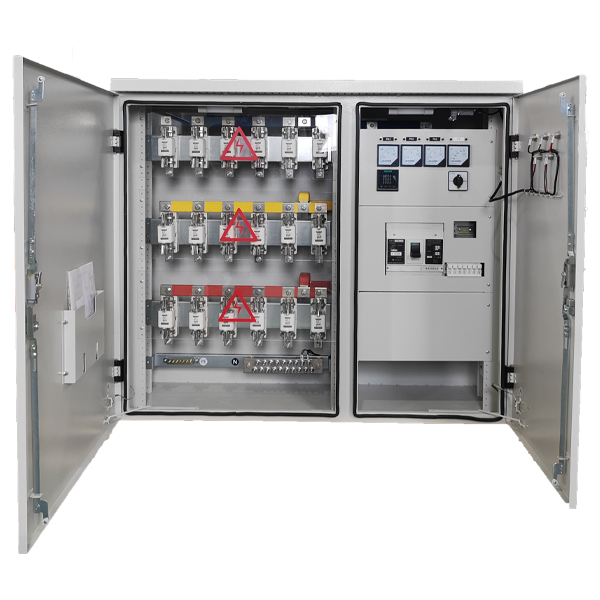

LVDB-T02
LVDB-T02

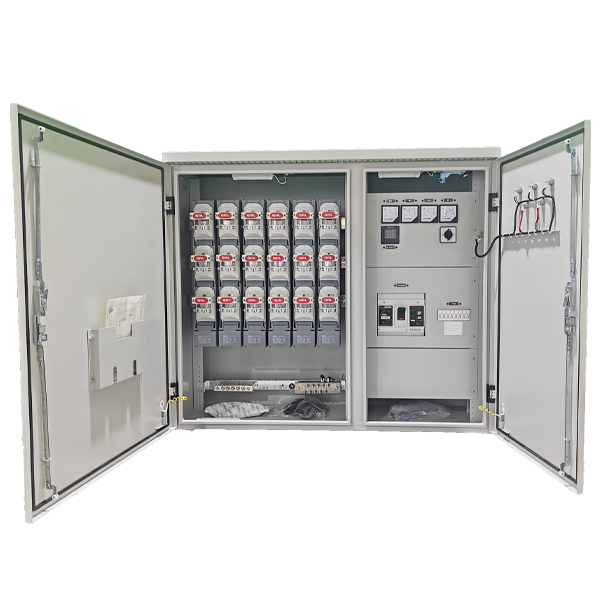

LVDB-T03
LVDB-T03

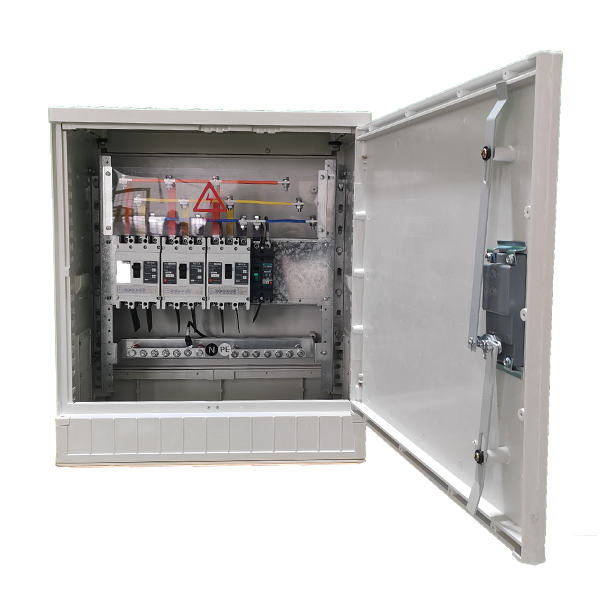

LVDB-T04
LVDB-T04

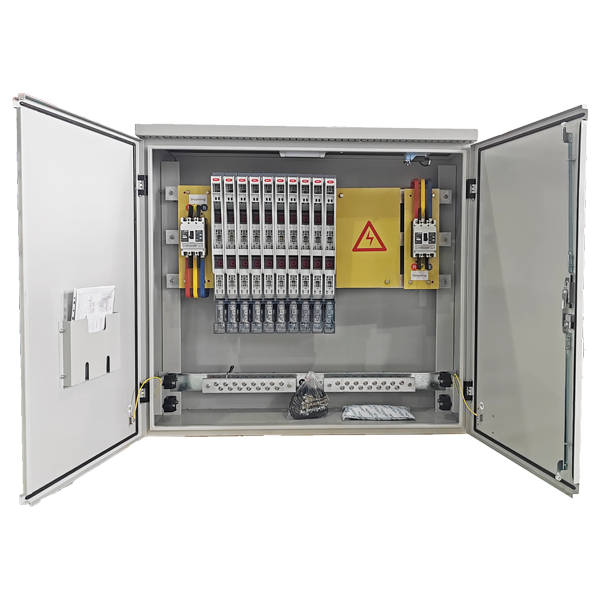

LVDB-T05
LVDB-T05

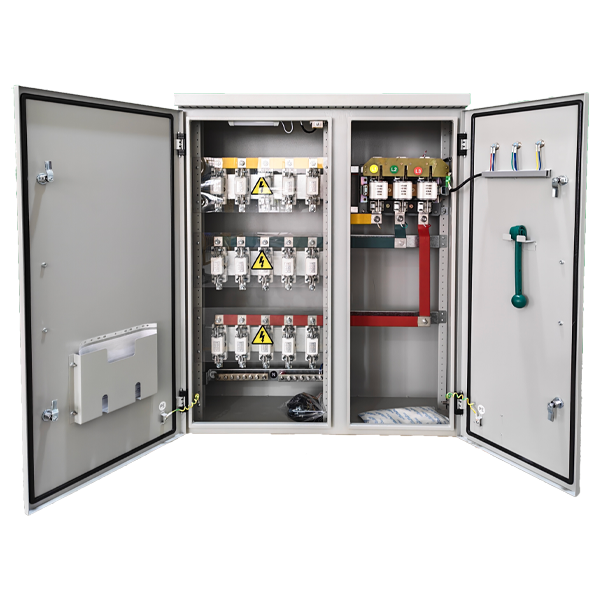

LVDB-T06
LVDB-T06

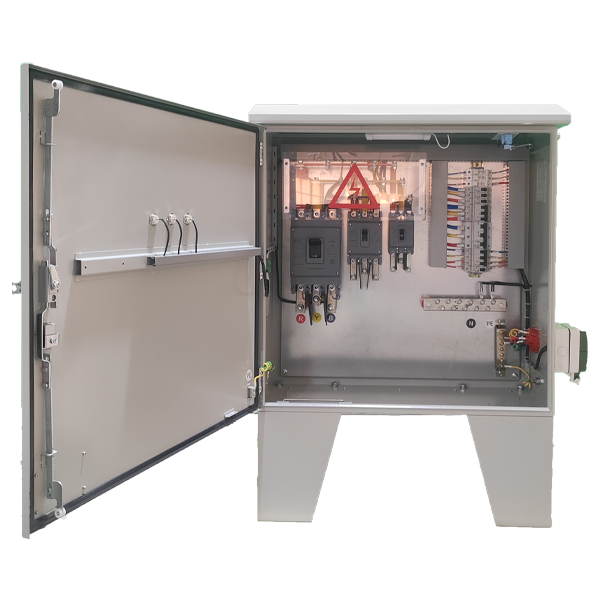

LVDB-T07
LVDB-T07

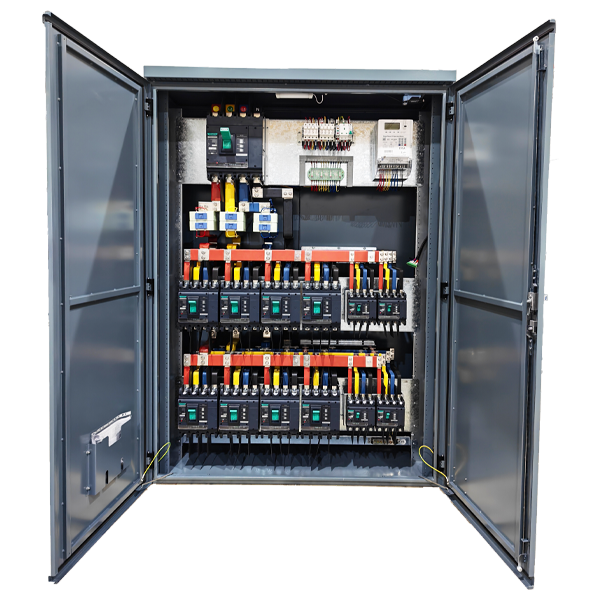

LVDB-T08
LVDB-T08

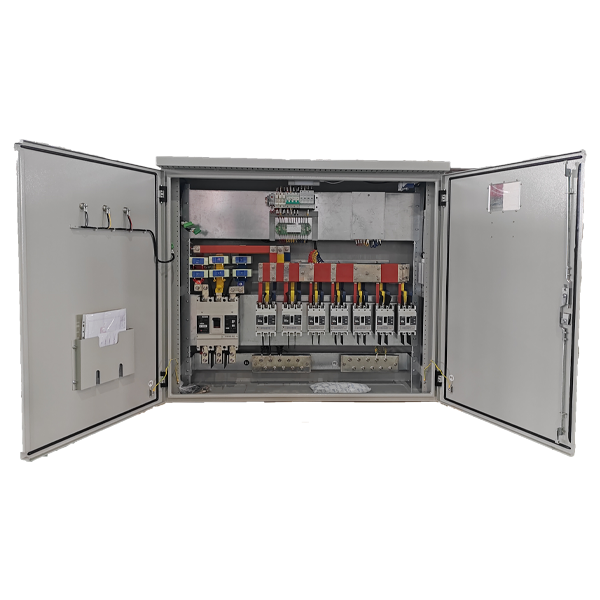

LVDB-T09
LVDB-T09

Low Voltage Distribution Board

Customizable low-voltage distribution and protection board.

Download Datasheet/下载规格书
Protection Rating

IP54
Rated Frequency

50, 60Hz
Rated Insulation Voltage

1000V
Installation Location

Indoor or Outdoor
Rated Operational Voltage

380, 400, 415V
Rated Current of Busbar

Up to 6300A
Rated Impulse Withstand Voltage

Up to 12kV
Structure

Single gate, Double gates, or Customized
Box Material

Cold-rolled sheet, Galvanized sheet, Stainless201/304/316L
Wiring Method

Bottom in bottom out, Top in bottom out, Side in side out, Side in bottom out

Brief Introduction

Low voltage distribution board is specially designed for the purpose of power distribution and protection. This series products are highly customized based on the projects requirement: the enclosure size and material; incoming MCCB capacity; outgoing MCCB quantity and capacity; copper busbar; SPD equipment; isolation and earth leakage protection; lighting; door security equipment and installation methods etc. This LVDB is extensively used in commercial and residential sectors for low voltage distribution applications. Before offering to the clients, this LVDB is stringently tested in order to ensure its flawless performance.

Protection Rating

IP54
Rated Frequency

50, 60Hz
Rated Insulation Voltage

1000V
Installation Location

Indoor or Outdoor
Rated Operational Voltage

380, 400, 415V
Rated Current of Busbar

Up to 6300A
Rated Impulse Withstand Voltage

Up to 12kV
Structure

Single gate, Double gates, or Customized
Box Material

Cold-rolled sheet, Galvanized sheet, Stainless201/304/316L
Wiring Method

Bottom in bottom out, Top in bottom out, Side in side out, Side in bottom out

评价

目前还没有评价

成为第一个“Low Voltage Distribution Board” 的评价者

您的邮箱地址不会被公开。 必填项已用 * 标注

FAQ

What IP rating do you recommend for outdoor distribution boxes in Africa?

For outdoor use in tropical or desert climates, we recommend IP54 or IP65 enclosures with anti-corrosion coating. Our TBC and LCB series are available in IP65 upon request.

Yes. Our LVDB low voltage distribution boards support copper busbars rated from 400A to 2500A. Custom configurations with specific breaker brands can be arranged for bulk orders.

Our MU32, MU33, and MU34 CT metering boxes comply with IEC 61439 and local utility requirements. CE certification is available for all exports.

Standard products ship within 15-20 working days after deposit. Customized orders typically require 30-45 working days depending on complexity.

We offer detailed installation manuals, and for large EPC projects, we can arrange factory training or remote commissioning support.
